Description

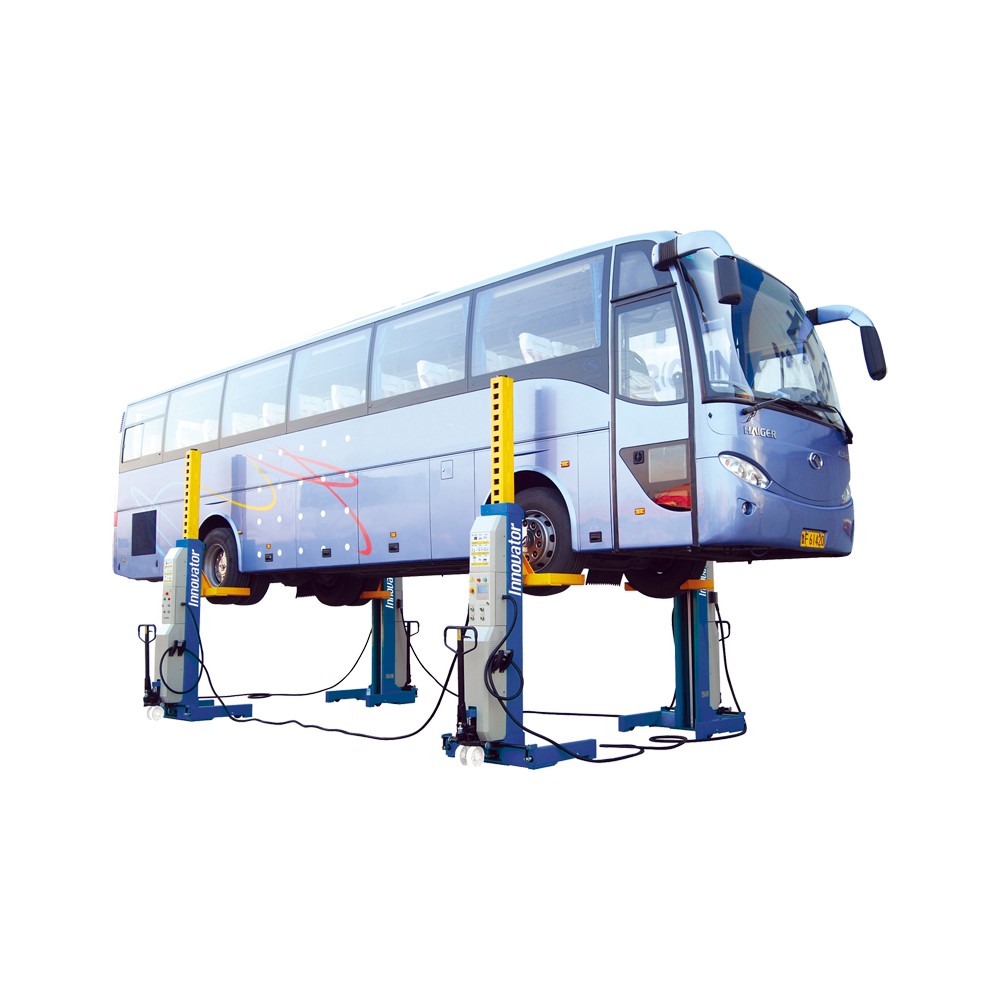

● 7500kg capacity per column;
● 2/4/6/8-column set available;
● Remote control handle with 5meters cable;
● Adjustable wheel support for all kinds of wheels;
● Double-safety guaranteed by both hydraulic flow control and mechanical locks;
● SCM technology guarantees synchronization;

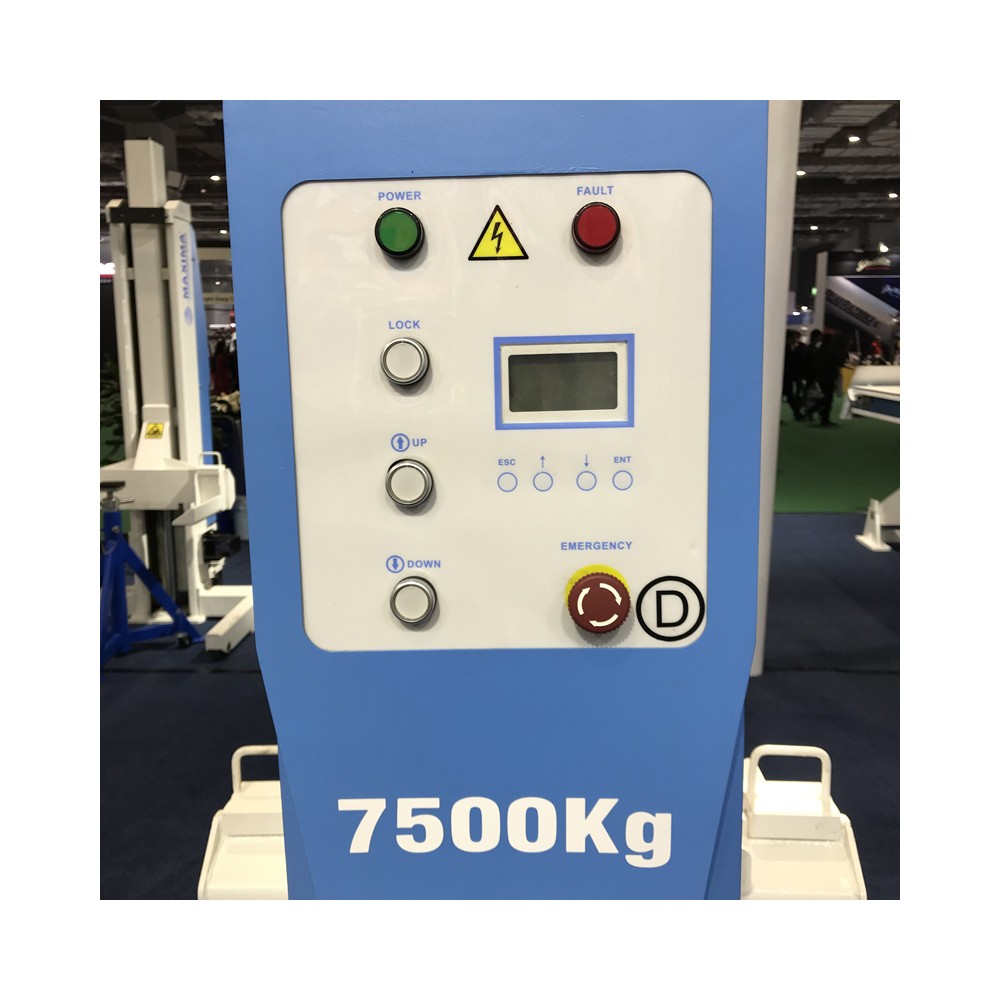

● LCD screen shows the exact lifting height and fault warnings;
● Movable column makes your work easy and comfortable;
● CE and ALI certified.
Data sheet
Data sheet
| Model name | IT8817 |
| Lifting capacity | 7500kg/column |
| Lifting time | 120S |
| Max lifting height | 1820mm |
| Dimension(L*W*H) | 1300*1100*2300mm |
| Lifting system | Hydraulic |
| Lock release type | Electrical release |
| Control voltage | 24V |
| Capacity of motor | 2.2kw/column |
| Power supply | 220/380/400V, 3Phase, 50/60Hz |
