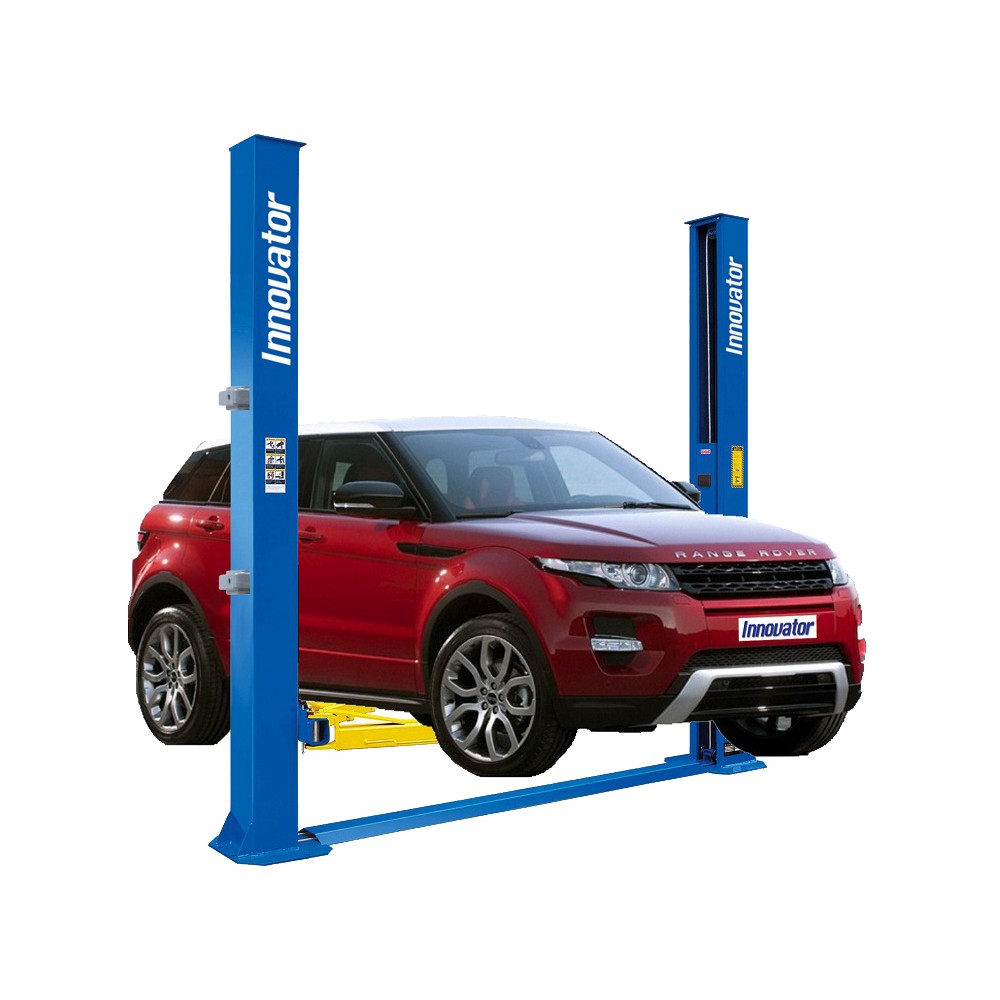

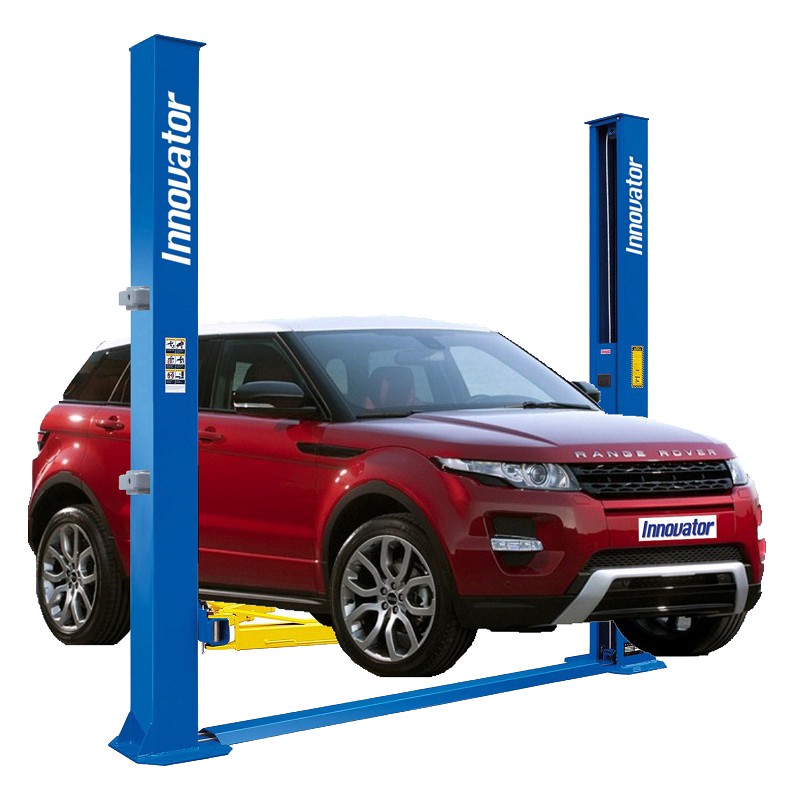

Two Post Lift IT8213E / IT8214E

New

$1,240.00

Buy in one click

More info

Description

● 3200/4000kg lifting capacity;

● Its base plate design demands less storey height;

● Chain lifting system combined with dual hydraulic cylinders;

● Electrical release, just press Up and Down button to operate the lift;

● The 24V ABS control box and limit switch consider your safety operation;

● Feet protection bar and door opening protection rubber pad effectively avoid unexpected injuries and damages;

● With height adapters for servicing light-duty trucks;

● Reserved hand pump joint on hydraulic block for emergency lowering;

● It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity;

● CE certificated.

Data sheet

Data sheet

Model name IT8213E / IT8214E
Lifting capacity 3200KG / 4000KG
Net weight 685KG / 715KG
Lifting time 1900mm
Min pad height 100mm
Overall height 2904mm
Overall width 3470mm
Capacity of motor 2.2KW
Power supply 110/220/380V, 50/60Hz
