Description
● Single hydraulic cylinder mounted underneath runway;

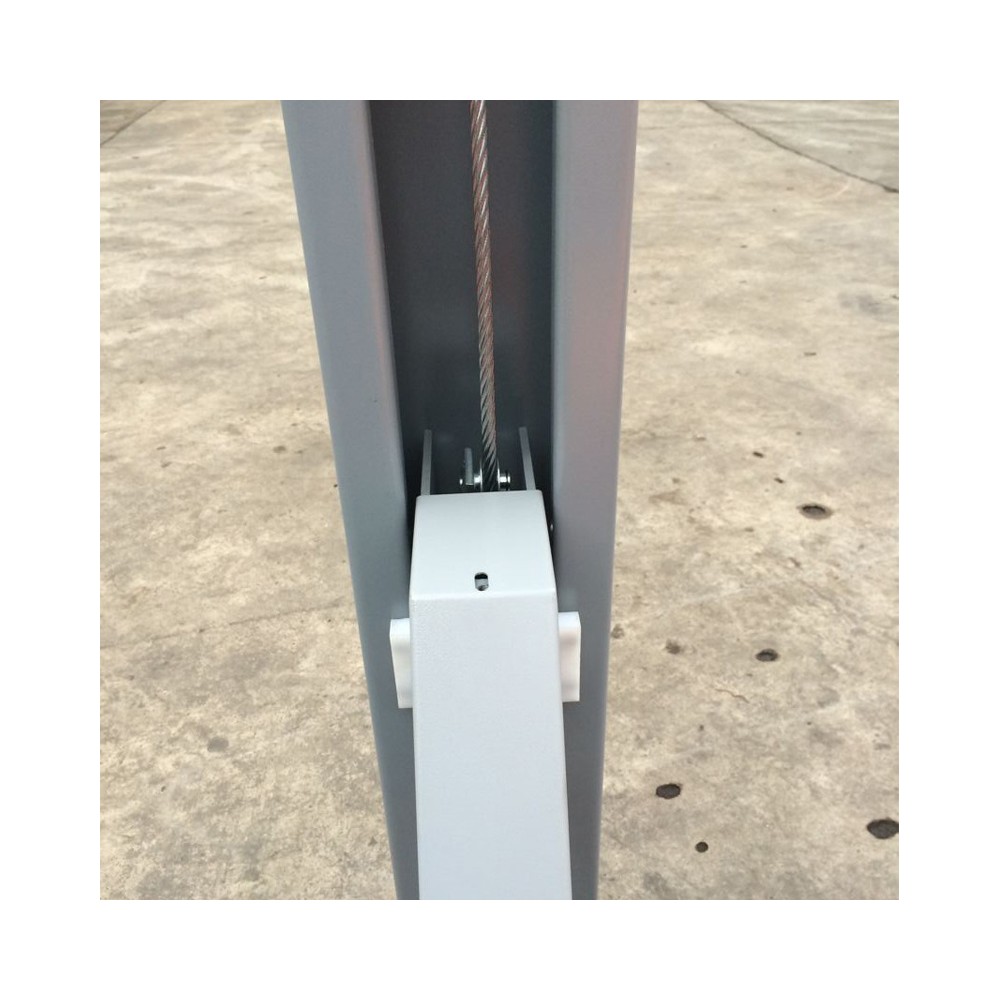

● Multi-position safety locks in each column;
● Manual or electrical lock release system;
● Its low profile runway design allows the vehicle going on and off the lifting platform conveniently;
● Adjustable distance between two platforms can be well applicable to vehicles of different width;
● The 24V ABS control box and limit switch consider your safety operation;
● The mechanical lock engaged automatically in lifting process;
● Reserved hand pump joint on hydraulic block for emergency lowering;
● It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity;
● CE certificated.
Data sheet
Data sheet
Model name | IT8415 |
Lifting capacity | 5000KG |
Net weight | 1500KG |
Max lifting height | 1800mm |
Runway min height | 200mm |
Height of columns | 2205mm |
Overall width | 3495mm |
Runway length | 5000mm |
Capacity of motor | 2.2KW |
Power supply | 110/220/380V, 50/60Hz |
