Description

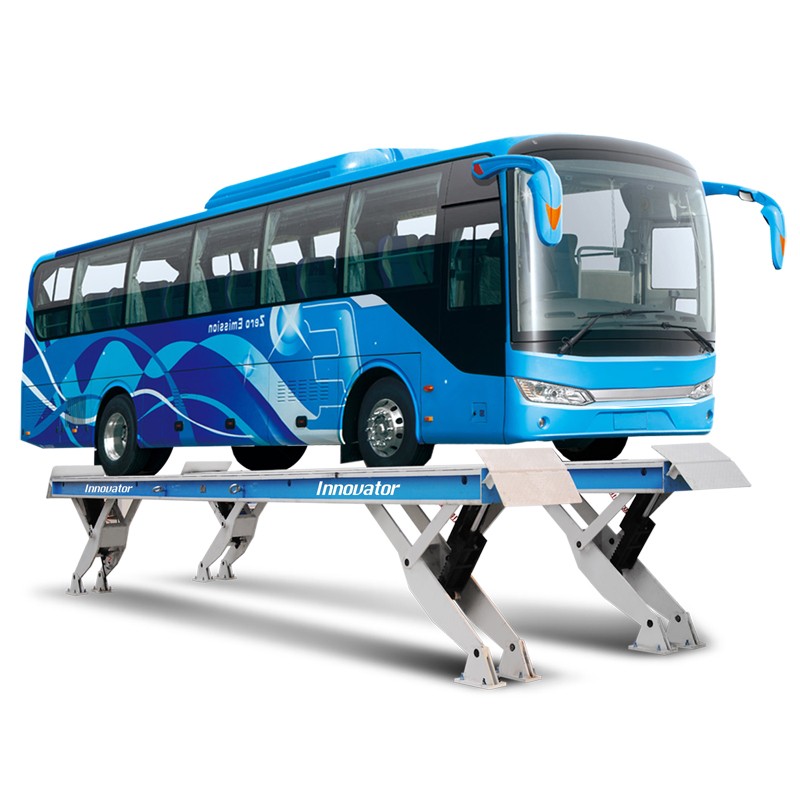

●25000kg lifting capacity, suitable for most bus and truck;
●Synchronization system ensures smooth up and down, even two platforms are unevenly loaded;
●Each platform is equipped with two cylinders, one at each end;
●With emergency descent device in case of power failure;
●Y-type lifting arm structure make the platform stronger but require less space;
●Electronic and hydraulic control systems share one movable control box, easy to assemble and disassemble;
● Double-safety guaranteed by both hydraulic flow control and mechanical locks;
● CE certified.
Data sheet
Data sheet
| Model name | IT8825 |
| Lifting capacity | 25000Kg |
| Lifting time | 120S |
| Max lifting height | 1750mm |
| Min height | 350mm |
| Overall width | 2680mm |
| Overall length | 12400mm |
| Platform width | 750mm |
| Capacity of motor | 7.5kw |
| Power supply | 220/380/400V, 3Phase, 50/60Hz |
