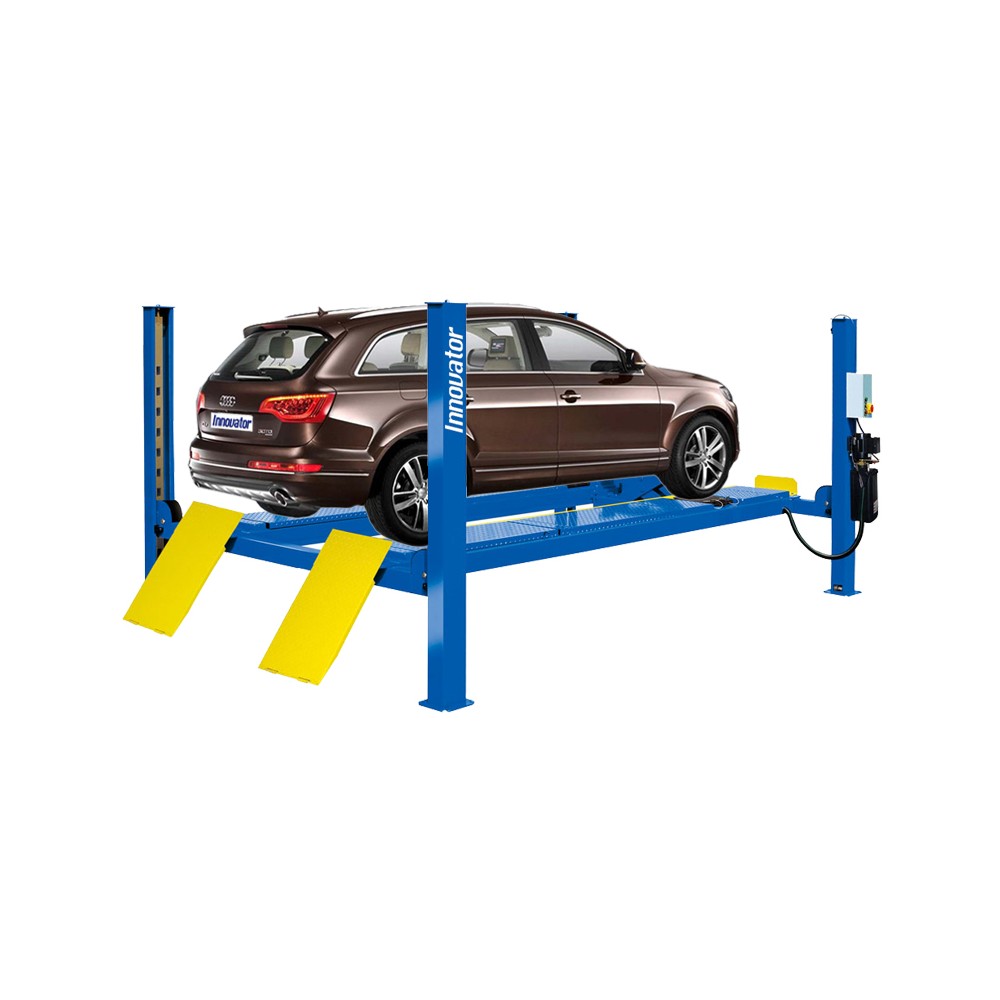

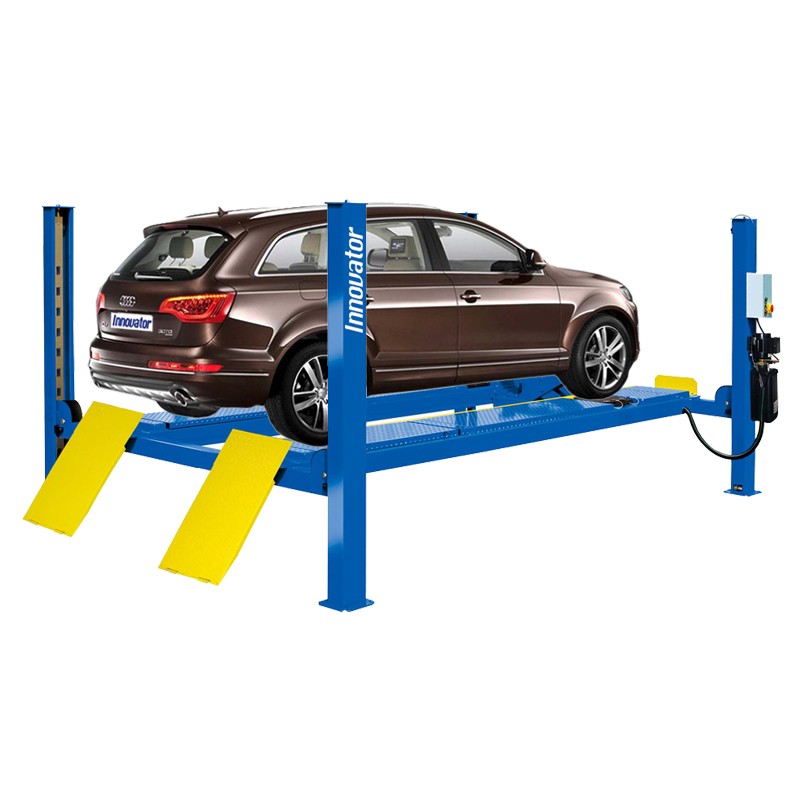

Four Post Lift IT8414

New

$2,310.00

More info

Description

● Single hydraulic cylinder mounted underneath runway;

● Multi-position safety locks in each column;

● Manual or electrical lock release system;

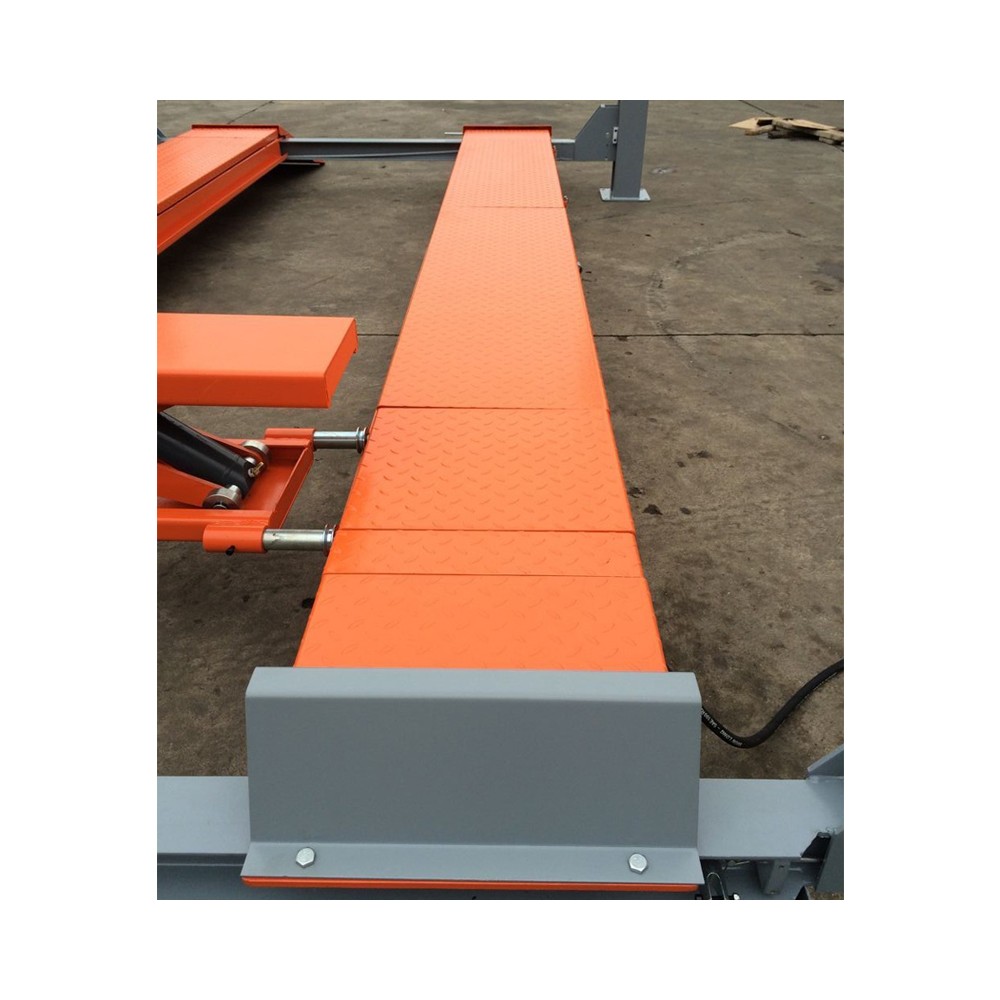

● Its low profile runway design allows the vehicle going on and off the lifting platform conveniently;

● Adjustable distance between two platforms can be well applicable to vehicles of different width;

● The 24V ABS control box and limit switch consider your safety operation;

● The mechanical lock engaged automatically in lifting process;

● Reserved hand pump joint on hydraulic block for emergency lowering;

● It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity;

● CE certificated.

Data sheet

Data sheet

Model name IT8414
Lifting capacity 4000KG
Net weight 1400KG
Max lifting height 1800mm
Runway min height 200mm

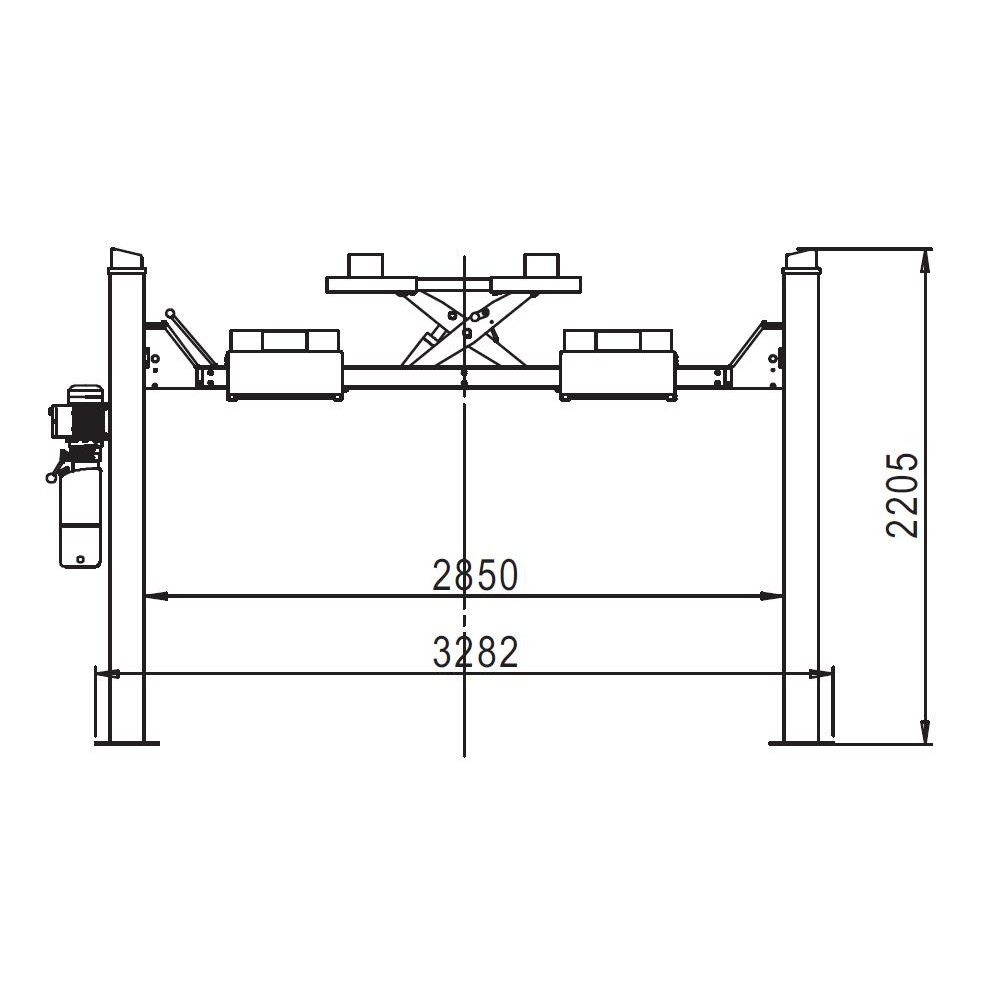

Height of columns 2205mm

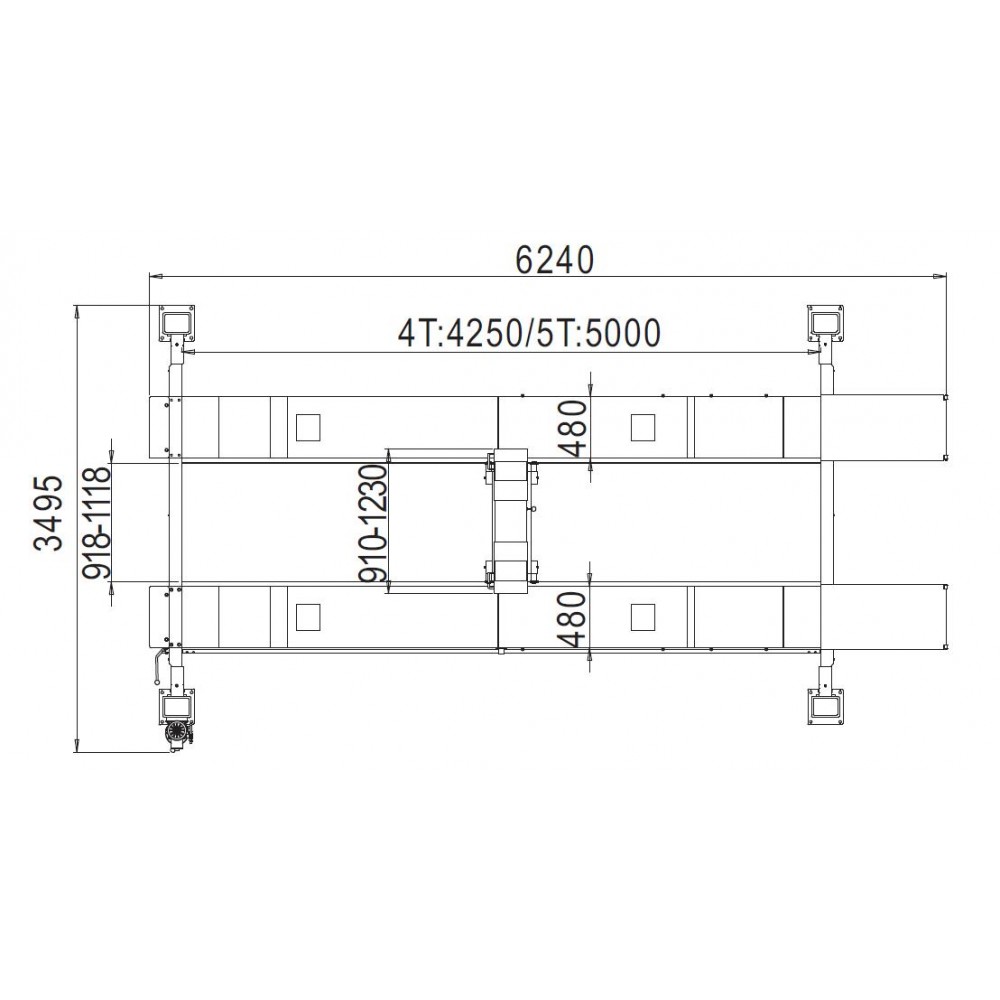

Overall width 3495mm
Runway length 4250mm
Capacity of motor 2.2KW
Power supply 110/220/380V, 50/60Hz
