New product

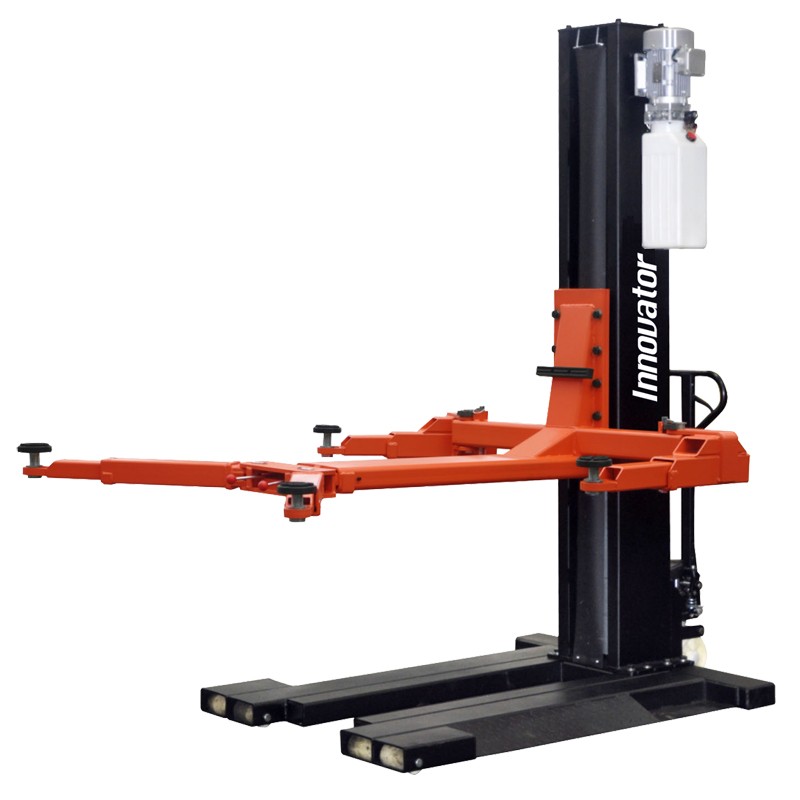

Single Post Lift IT8812E

More info

Description

● Mobile Positioning based on Pallet Jack System.

● Electrical Safety Lock Release System.

● 2500KG rated lifting capacity covers most vehicles.

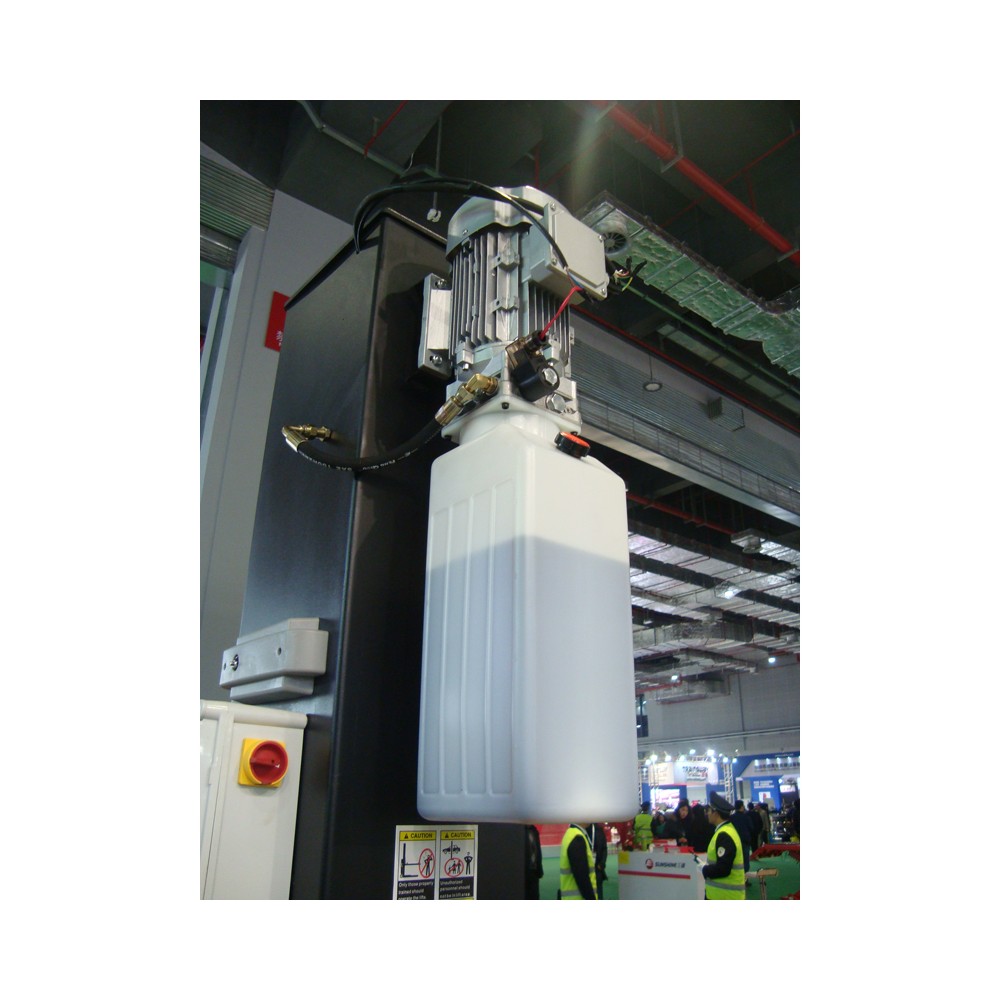

● Aluminum Motor

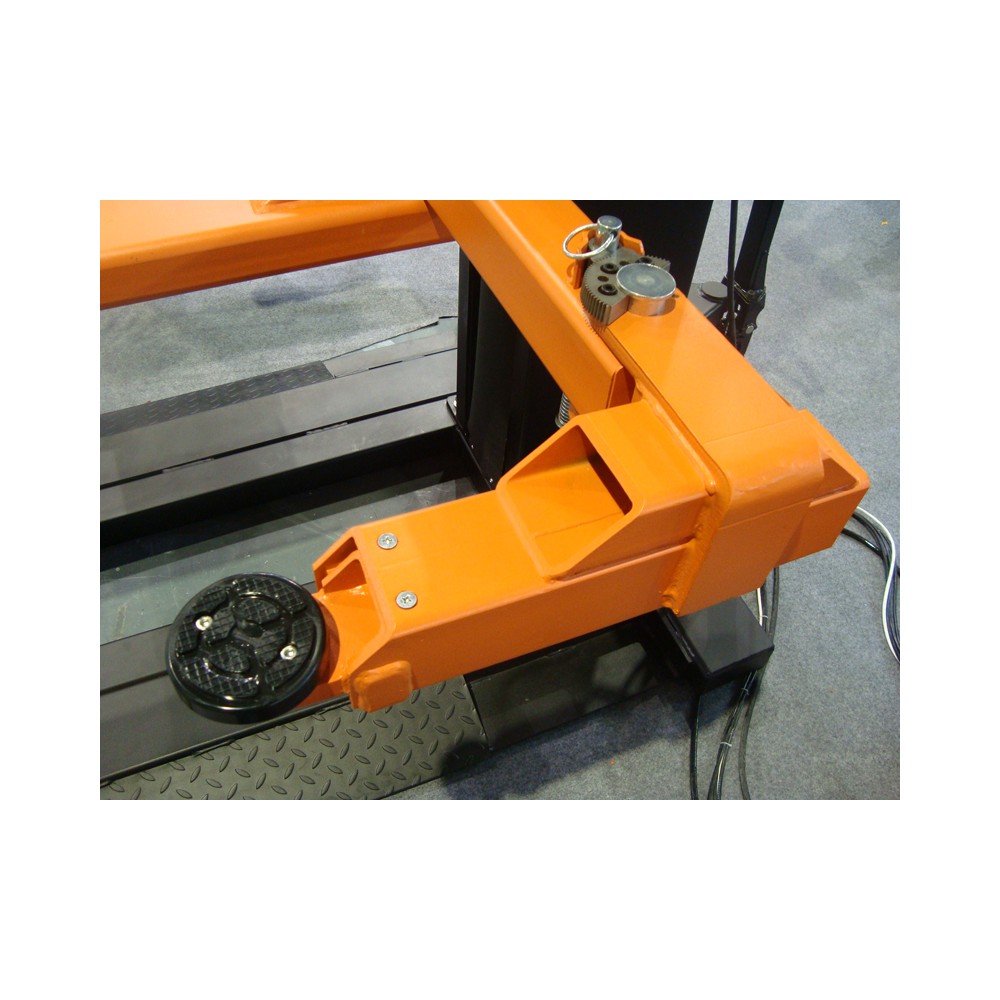

● Screw-up pads design makes so easy and quick contact with vehicles’ pickup points.

● 24V control system matches CE standard.

● Aluminum motor prevents overheating.

● Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken.

● Reliable cylinder, chromed-plating honed tube and piston rod, provides a long service life.

Data sheet

Data sheet

Model name IT8812E
Lifting capacity 2500KG
Net weight 850KG
Lifting time 55s
Max lifting height 1915mm
Post height 2510mm
Min height 110mm
Capacity of motor 2.2KW
Power supply 110/220/380V, 50/60Hz
