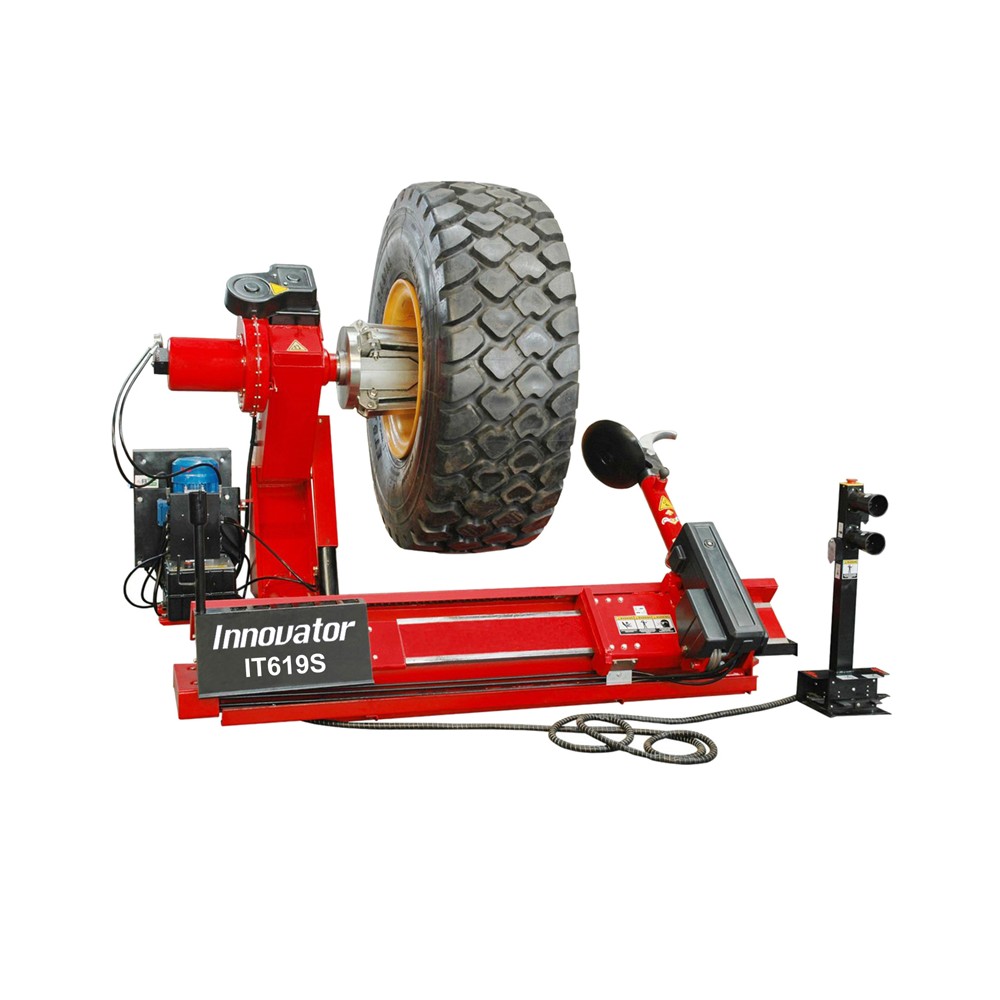

Truck Tire Changer IT619S
More info
Description
● Specially designed for trucks, buses, agricultural and earthmover tire with electro-hydraulic power.
● Quick and safe clamping of wheels via self-centering chuck.
● Tire changing of tube and tubeless tire.
● Clockwise and counter clockwise rotation.
● Hydraulic powered lifting and lowering of the mounting arm.
● Hydraulic powered rotation of the mounting tool.
● Hydraulic powered carriage shuttles the wheel sideways and positions it on and off of the clamping chuck.
● Hydraulic pump station made of high-quality assembled imported parts.
● Bronze gearbox effectively extends the long-lasting expectancy.
● Imported hydraulic and pneumatic sealing parts with excellent quality.
● Two-speed main motor.
● Hydraulic lifting arm with safety ensured switch.
● Roller bearing designed spindle on the mounting head can be used for tire with tight bead.
Data sheet
Data sheet
| Model name | IT619S |
| Control voltage | 24V |
| Motor power | 0.88kw/1.1kw |
| Max wheel diameter | 2500mm / 98” |
| Max wheel width | 1200mm / 48” |
| Max tire weight | 2000kg |
| Hydraulic motor power | 3kw |
| Gear box motor power | 3kw |
| Clamping range | 14”-56” |
| Power supply | 110/220/380V, 50/60Hz |
| Net weight / Gross weight | 1145kg / 1300kg |
| Packing dimension | 2310*2100*1100mm |
