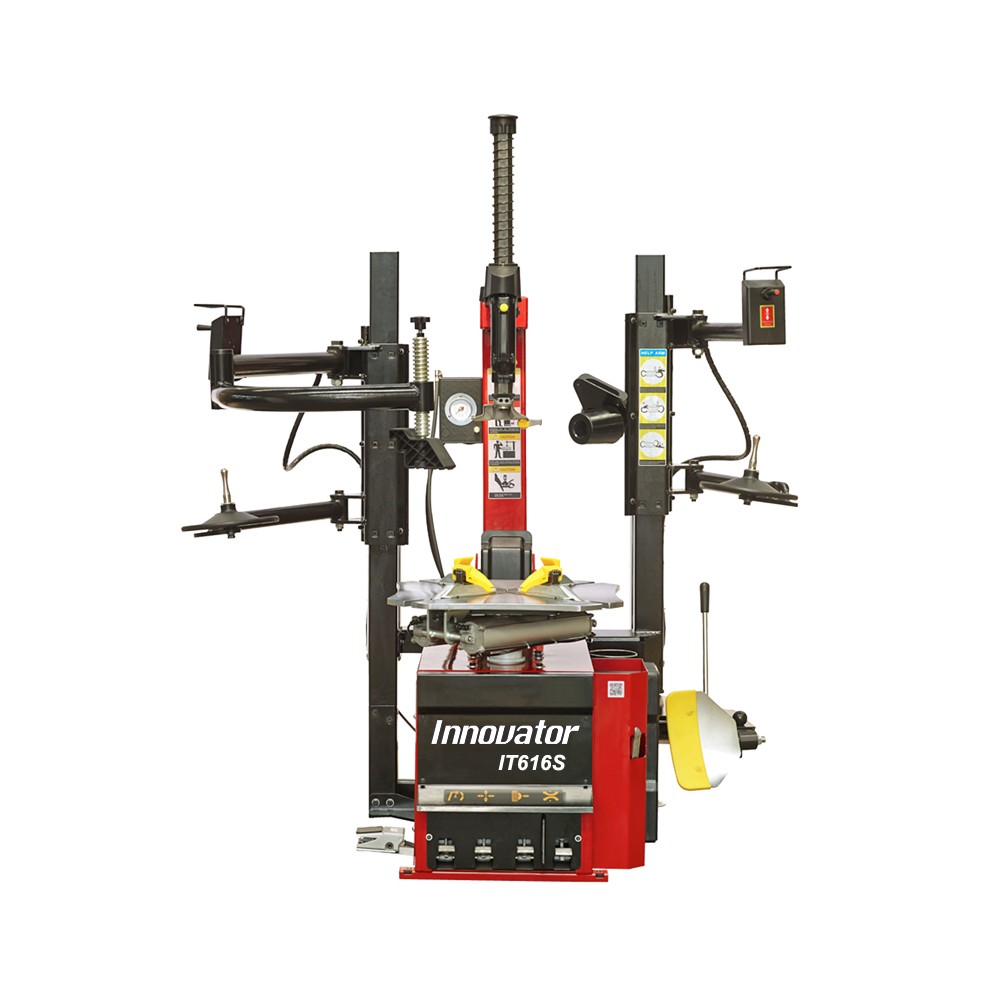

Tire Changer IT616S

New

More info

Description

● For standard, low-profile and run-flat wheels of car and light commercial vehicles;

● Pneumatically operated tilting back post;

● With double help arms;

● Locking rim from 12-26";

● Pedal assembly may draw from front cover;

● Large main body and turning table;

● Adjustable bead breaker;

● Bigger bead breaker cylinder, more powerful;

● Pedal controlled inflator.

● Rear air tank serves as tubeless tyre inflation device.

Data sheet

Data sheet

Model name IT616S
Motor power 1.1/0.75kw
Max wheel diameter 45”(1140mm)
Max wheel width 14”(355mm)
Outside clamping 12”~23”
Inside clamping 14”~26”
Air supply 8-10bar
Bead breaker force 2500kg
Power supply 110/220/380V, 50/60Hz
Net weight / Gross weight 378/428kg
Packing dimension 1480*1000*960mm
