New product

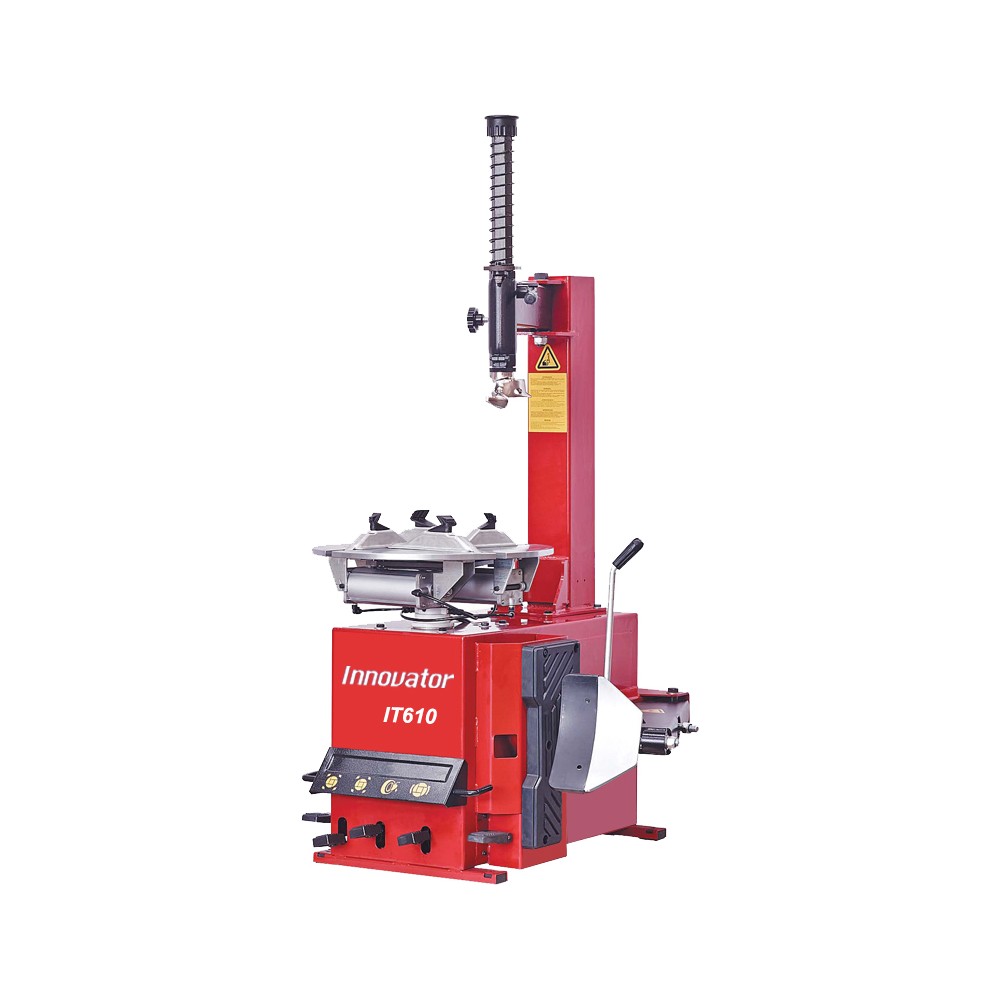

Tire Changer IT610
More info
Description
● The complete bead breaker cylinder made of steel iron, more durable;
● The complete clamping cylinder with 80mm diameter, the seal ring and the piston are integrated, less resistance;
● The complete gearbox made of aluminum, light and more durable;
● Semi-automatic side swing arm;
● Pneumatic bead breaker;
● Optional motorcycle adaptor.
Data sheet
Data sheet
| Model name | IT610 |
| Motor power | 1.1/0.75kw |
| Max wheel diameter | 38”(960mm) |
| Max wheel width | 13”(330mm) |
| Outside clamping | 10”~18” |
| Inside clamping | 12”~22” |
| Air supply | 8-10bar |
| Bead breaker force | 2500kg |
| Power supply | 110/220/380V, 50/60Hz |
| Net weight / Gross weight | 178/191kg |
| Packing dimension | 970*750*950mm |
