New product

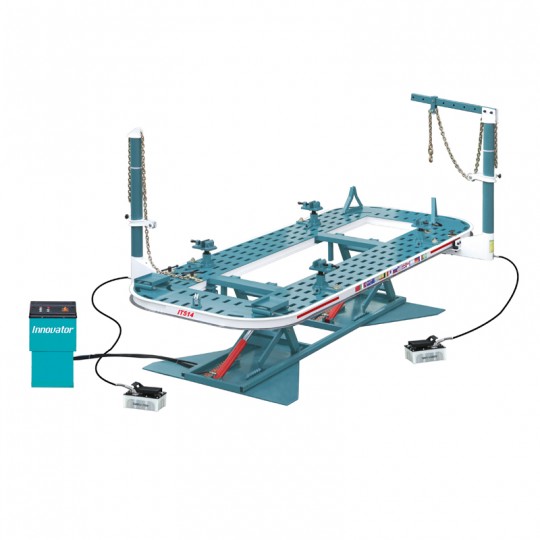

Frame Machine IT515

New

$11,000.00

More info

Description

Specification:

Model name

IT515

Platform length

5600mm

Platform width

2180mm

Platform height

360-1050mm

Post Max tension

95KN

Pneumatic pressure range

0.8MPa

Post working range

360°

Max lifting weight

3500kg

Gross weight

3200kg





Features:

1, Manganese plate entirety lifting platform, high strength reinforcement

plate, lifting smoothly and operating safely.

2, The platform is board with its panel formed by the large-scale CNC cutting machine.

3, There are more holes on the platform, more easy to fix the clamps, no working blind.

4, Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. The lifting range is 360-1200mm in which can be adjusted.

5, Two pulling towers can be rotated 360 degree along the platform which is operated more convenient.

6, Universal clamps are forged and heat-treated, high strength and long life,.

7, Hydraulic system with good design has powerful driving force, long life and low failure rate.
