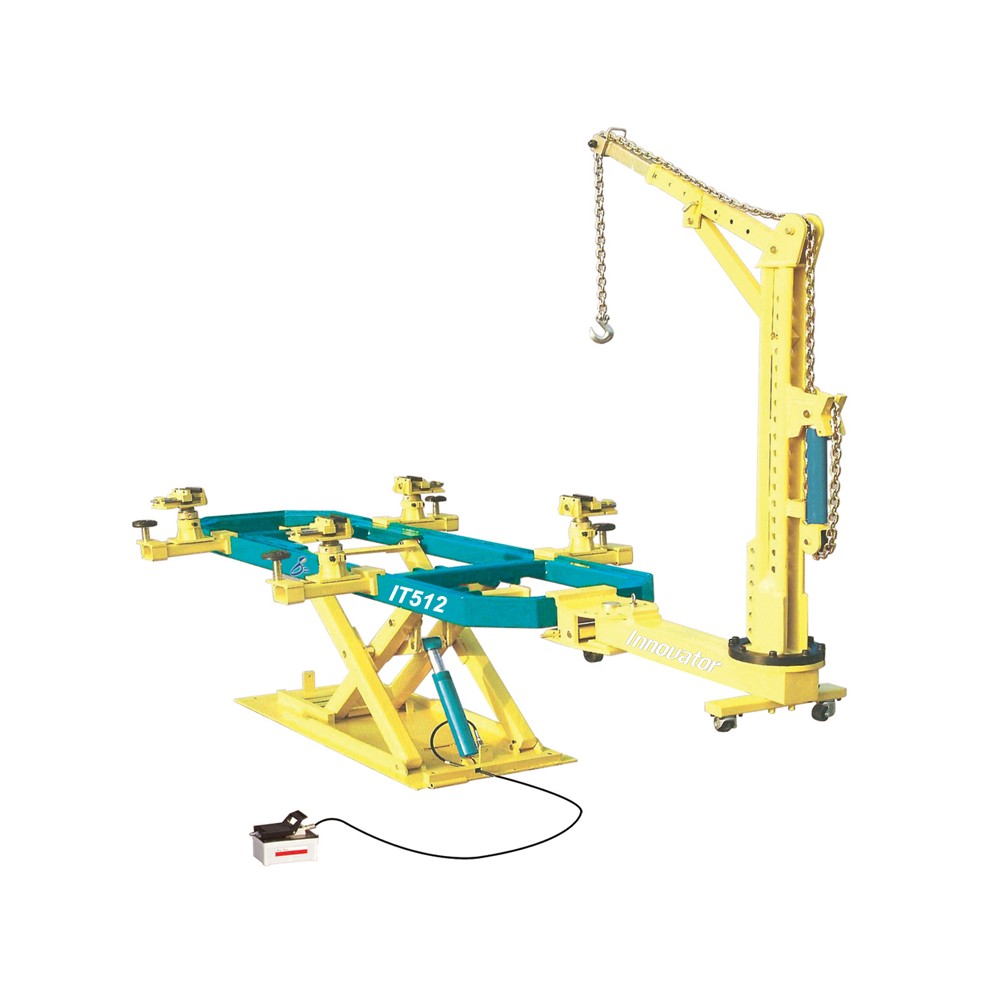

Frame Machine IT512

New

$5,600.00

More info

Description

Specification:

Model name

IT512

Platform length

3350mm

Platform width

890mm

Platform height

120-1400mm

Post Max tension

95KN

Pneumatic pressure range

0.8MPa

Post working range

360°

Max lifting weight

3500kg

Gross weight

1200kg





Features:

1, European working frame machine, welded with cold high alloy rectangular tubes, high flatness and high intensity.

2, Vertical lifting platform, it can be down to 120mm, up to 1700mm from the floor.

3, High degree freedom tower, easy to move, strong and fast to fix, wide working range.

4, The unique patented design universal main clamp.

5, Configuration of various tools almost considered all kinds of car deformation correction.

6, The hydraulic system is reliable, long life, powerful.

7, Global synchronization of the body database information to ensure that the latest and fastest body data.
