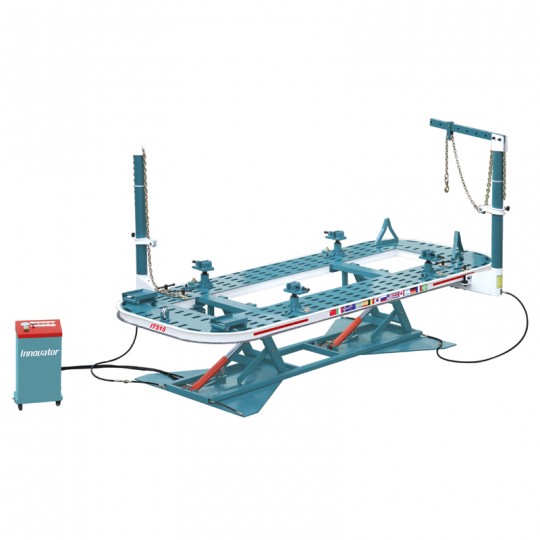

Frame Machine IT514

New

$8,400.00

More info

Description

Specification:

Model name

IT514

Platform length

5300mm

Platform width

2180mm

Platform height

360-1050mm

Post Max tension

95KN

Pneumatic pressure range

0.8MPa

Post working range

360°

Max lifting weight

3500kg

Gross weight

3100kg





Features:

1, Double cylinder self-locking hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. The lifting range is 360mm-1050mm in which can be adjusted.

2, The platform is board with its panel formed by the large-scale CNC cutting machine from a single cut.

3, There are more holes on the platform, more easy to fix the clamps, no working blind.

4, The pulling tower can be rotated 360 degree along the platform which is operated more convenient.

5, The unique patented design universal main clamp.

6, Configuration of a variety of tools to meet any deformation correction and repair.

7, The hydraulic system is reliable, long life, powerful.

8, Global synchronization of the body database information, ensures to provide the latest and fastest body data.
