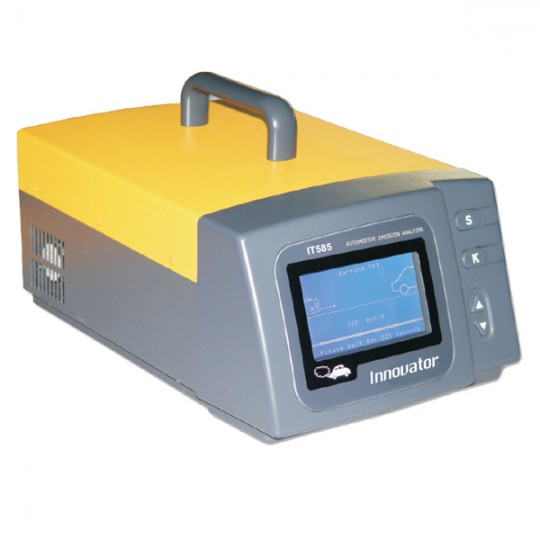

Emission Analyzer IT584
More info
Description
Specification:
|
Measuring Range |
HC: 0~9,999ppm CO: 0~10% CO2: 0~18% O2: 0~25% |
|
Measurement Accuracy |
HC: ±12 ppm (abs.) CO: ±0.06 % (abs.) CO2: ±0.5 % (abs.) O2: ±0.1 % (abs.) |
|
Response Time |
Less than 10s |
|
Warm-up Time |
10 min |
|
Dimension |
260*180*450mm |
|
Net Weight |
6Kg |
Features:
1, Measure concentration of HC, CO, CO2 and O2 contained in exhaust gases from gasoline engine of vehicles. Advanced NDIR (non-Dispersive Infrared) analysis technology is used to measure HC, CO, CO2 and the newest generation of electrochemical technology is adopted to measure O2 .
2, Designed with LCD screen for easier setting and operation.
3, Emissions from vehicle engine fuels of CNG, LPG and Ethanol gasoline can be measured.
4, Designed with oil temperature measurement probe.
5, 200 groups of measurement data storage and review.
